500W
Motor
48V 12.75Ah/25.15Ah
Battery
25 KM/H
Max speed tested
85 miles
Per Charge
20"*3 inch
CHAOYANG Tire
Oil Disc Brakes
Brake System

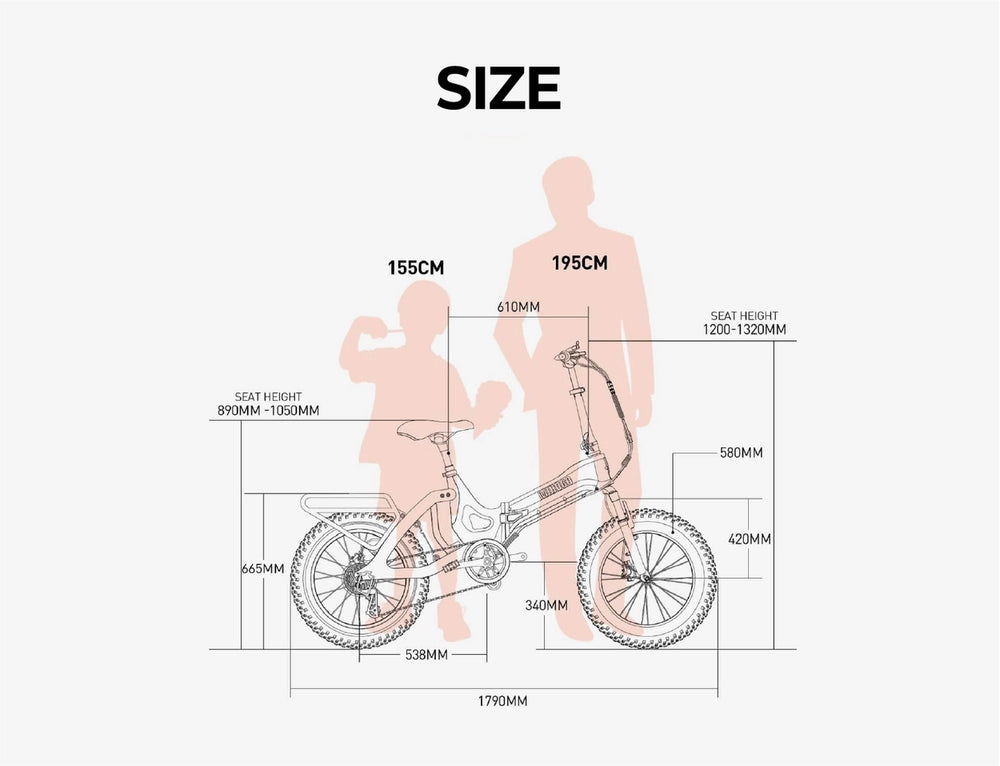

产品尺寸信息
A.
59.8inch - 152cm
B.
44.1inch - 112cm
C.
22inch - 55cm
D.
3.94inch - 10cm
E.
39.4inch - 100cm
F.
32.6inch - 83cm
G.
39.4inch - 100cm
技术规格
Electronics
Motor
500W
Connectivity
Bluetooth Low Energy

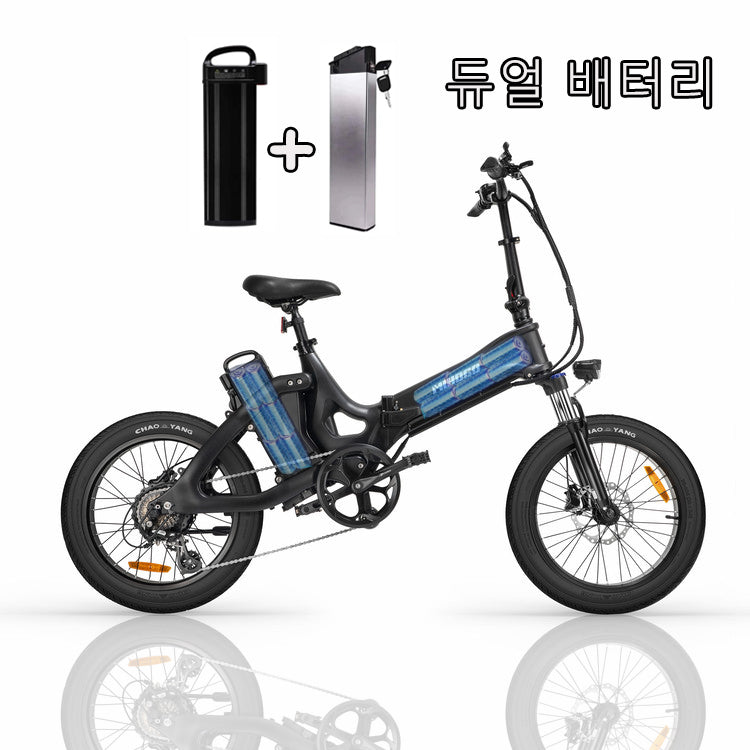

Battery
12.75AH/12.75AH+12.4AH
charge Time
6/12 Hours
Charger Amps
2A
DISPLAY
SLHN-P6 LED samrt Display
Bike
Net weight
77IBS
unfold
1750*640*1250mm
fold
940*480*690mm
Tire
20"*3 Chaoyang
PEDAL ASSIST
5 Levels
TOTAL WEIGHT LIMIT
330 lbs

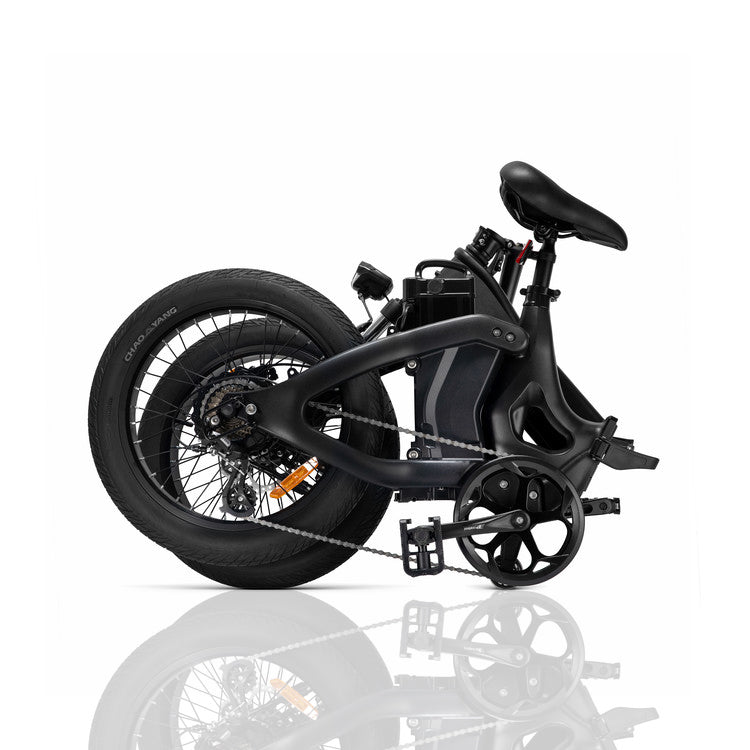

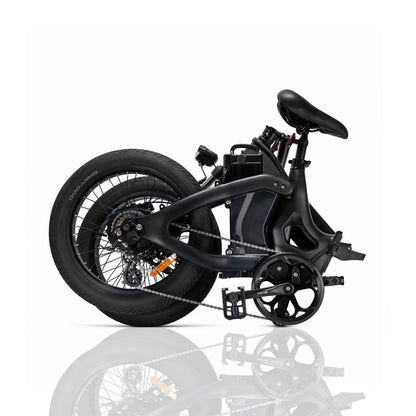

FOLDING
Yes
Key Specifications
Max Range
40Miles/85Mile
Sensors
high-end speed sensor
Max Speed
25KM
THROTTLE
Half throttle
Fork
MIHOGO-20 45mm travel, with
Adjustable software and hardware
CRANKSET
aluminum 52T 170mm
SHIFT LEVER
shimano TX50-7
SADDLE
TPE black
HANDLEBARS
640mm wide Curved handle Aluminium Sand grain black
STEM
Adjustable stem
Handlebar Grip
EVA foam black
Cable Harness
IPV6 fireproof cable
Frame
Magnesium alloy
Transmission ratio
52/14-52/28
REAR DERAILLEUR
shimano M310
BRAKES
Oil Disc Brakes, F 180mm R160mm rotors
RIDER HEIGHT
5'2" - 6'8"
CRANKSET
170mm w/ 52 T
SHIFT LEVER
7 Speed Trigger
REAR DERAILLEUR
7 speed
CHAIN
134 Link, 7Speed
